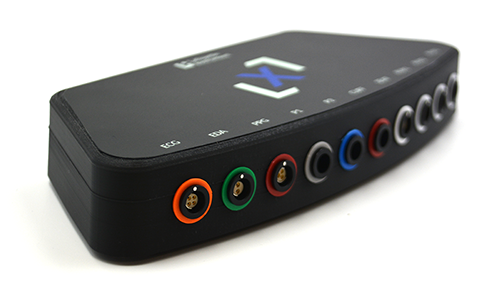

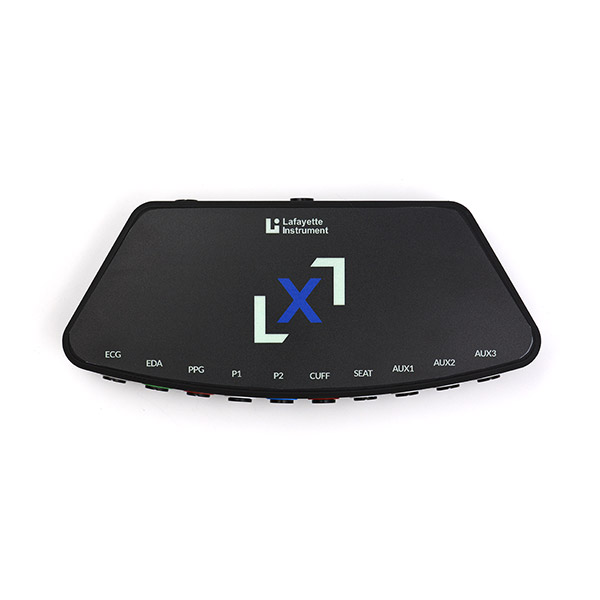

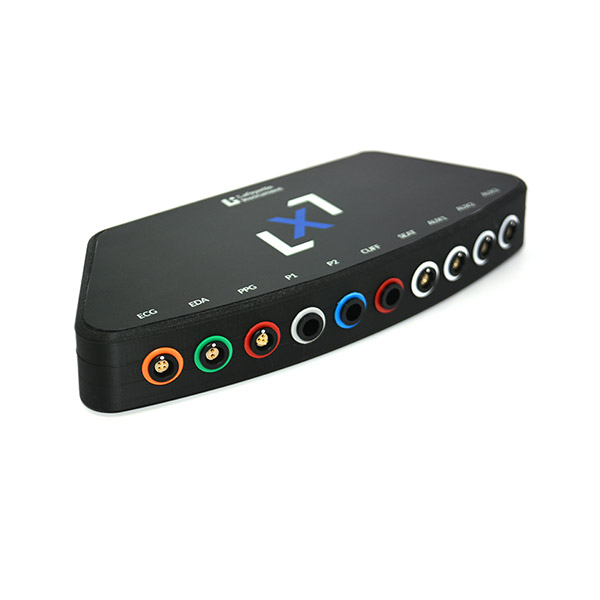

LX7 Polygraph System

Model LX7-S



The LX7 is our next-generation polygraph system that boasts features designed to elevate accuracy, consistency, and usability in the field.

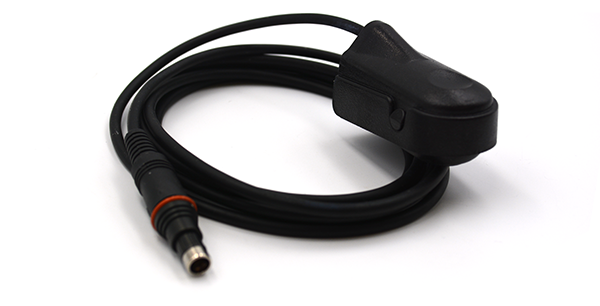

PPG


Enhanced PPG Sensitivity

The LX7 features improved detection of subtle, rapid changes in pulse blood volume via the photoelectric plethysmograph (PPG) sensor, delivering more reliable cardiovascular readings across a broader selection of examinees.


ECG Channel


New ECG channel for Pulse Arrival Time (PAT) measurement

Calculates the time between the ECG pulse and PPG waveform providing a time measurement that is directly correlated to blood pressure. Supports research and further development of the PAT measurement as an eventual replacement for the cardio measurement. Research has found that PAT is as effective as the cardiograph for discriminating between truthful and deceptive people in a polygraph test.

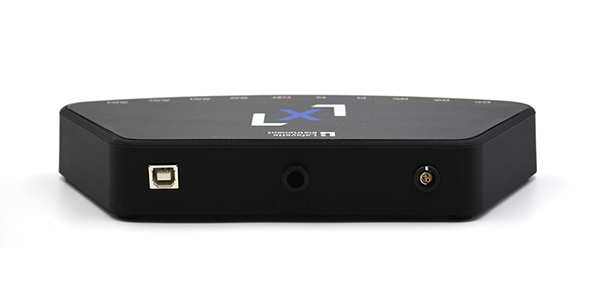

LX7 Back

Expansion port to support future sensor development

Newly designed sensors already in development. Coming soon!

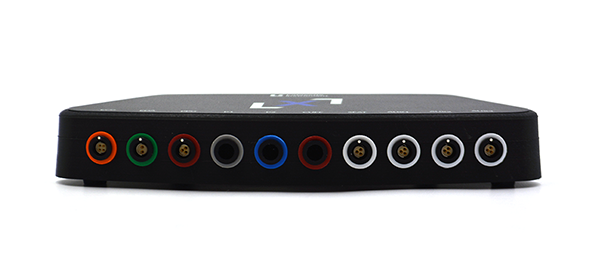

LX7 Inputs

Modernized enclosure design

Maintaining high quality reliable connectors, the LX7 employs a curved design that improves cable management and organization for a cleaner workspace. Enclosure is built with polycarbonate blend for superior toughness, durability, impact resistance and heat resistance.

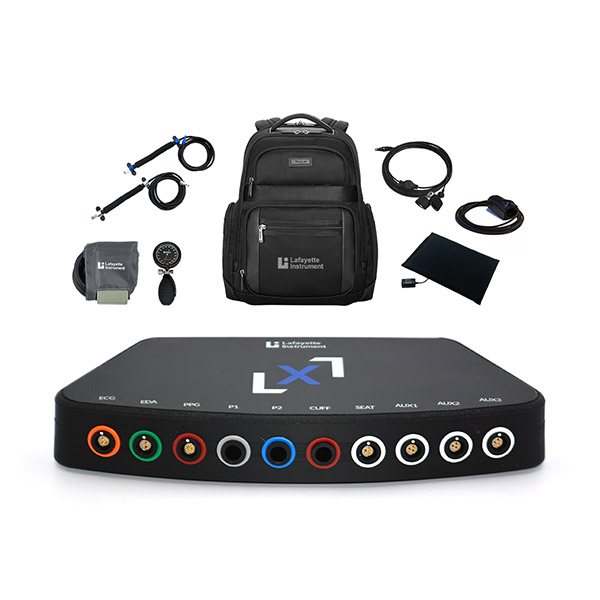

LX7-S System includes

  • LX7 Polygraph Data Acquisition System
  • LXEdge Software
  • LXSoftware Bundle with OSS-3
  • Activity Sensor
  • Photoelectric Plethysmograph (PPG)
  • Vented Pneumo Chest Assembly, Silver
  • Vented Pneumo Chest Assembly, Blue
  • Repositionable/Disposable with 2 Reusable Snap EDA Electrodes
  • Blood Pressure Cuff and Pump Bulb
  • DAS Storage Pouch
  • Targus Backpack

Features

  • 10 data channels including a new ECG channel
  • Next-generation pulse arrival time (PAT) sensor
  • Streamlined EDA measurement with expanded GSR range results in consistent, high-precision results
  • Upgraded processor delivers increased performance and efficiency
  • New expansion port for future sensor development
  • Curved design improves cable management and organization for a cleaner workspace
  • Quick release connectors with extended connection reliability
  • Maintains medical grade isolation for subject safety
  • Supports usage of LX6 accessories
  • Powered by well known LXEdge and LXSoftware

Specifications

  • Size: 8.66” x 3.61” x 1.21” (22.0 x 9.2 x 3.1 cm)
  • Power: USB connection
  • Isolation: 5000Vrms isolation on all channels
  • Enclosure material: ABS/Polycarbonate blend
  • Data Transfer Rate: 180 samples/second across all channels
  • Resolution: 32-bit analog to digital conversion
  • Meets ASTM standards
  • Enclosure UL 94V-0 rated
  • CE certified/meets EMC directive
  • Supports LXEdge/LXSoftware



Sensor Channels

Input Channels Specifications
Cardio 1 0 to 140 mmHg
Pneumo 2 Extended pressure range
EDA 1 GSR: 3.59 μA constant current, range of 10 kΩ to 4.0 MΩ
Isolation: additional 2000Vrms
PPG 1 PPG finger clip: 0.47 second time constant, 940 nm
Activity 4 0 to 4 V Analog Input
ECG 1 Isolation: additional 2000Vrms

Media

Software Updates

Software Devices OS
LXEdge 1.2.8
Version: 1.2.8.2
LX7, LX6, ParagonX, Paragon Windows 10, 11 Download
LXSoftware Bundle 11.10.6 with OSS-3
Version: 11.10.6.502
LX7, LX6, LX5000, LX4000 Windows 10, 11 Download
